Lucid Chain Wizard Specification

The key words "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in this document are to be interpreted as described in RFC 2119.

Revision History

Version Date Notes
1.0 2025 Initial service chain modeling version.

Introduction

Lucid Chain Wizard provides a service chain modeling language that is capable of specify many service chains configurations such as its type or TTO calculus. LCW helps to import and export service chains from ITop and Redmine, and it can also give some detailed metrics about SLA compliance. In this page we will describe this language.

What is a service chain

A service chain is a set of two or more organizations that are related to each other through at least one service, in which a series of agreements are involved through an SLA. In this SLA we can specify TTO and TTR values. Once we have this structure, we can represent it in a yaml file and use it in ITop or Redmine using Lucid Chain WIzard.

Before we start introducing the yaml structure and all the possible options that it provides, we are going to describe some concepts:

  • Incident/request/issue: It is a need reported by a customer. It must be handled by an organization following its repective SLA rules. For us every term such as incident, service request, user request and so on will be treated and refered as "issue".

  • TTO: It means Time To Ownership. It is the time it takes for a team or individual to be assigned to an issue after it has been created or its state changed.

  • TTR: It means Time To Resolve. It is the time it takes for an issue to be closed since it has been assigned to someone or a team.

Specification

A service chain model description is a YAML document with following structure. Note that primitive data types in the service chain model specification are based on the types supported by the JSON-Schema Draft 4.

SCModel UML representation

Figure 1: SCModel UML Representation.

As you can see in Figure 1, SCModel specifications is complex. The UML has different colors to make it easier to understand each part:

  • Grey: This color is used to represent the whole service chain.
  • Purple: This color is used to represent all Enums in SCModel notation.
  • Blue: This color is used to represent all the parts related with SCModel service chain configuration.
  • Light orange: This color is used to represent all the parts related with organizations, including teams, services and people.
  • Pink: This color is used to represent all the parts related with SLAs and objectives.

Type faceted chains

In service chains with type faceted we have a simplified incident management. In this type of service chains the customer created an issue for its provier. The issue is assigned to a team and later to a person. When this happens, TTO is calculated as the time between its creation and its asignation. Once TTO is calculated, we start to count TTR until the issue has been resolved. Although the issues have states, they are always associated with the same service. If during the issue management the provider organization has to pass the resposability to one of its providers, a new issue between them must be created. In these cases we can close or pause the original issue. This way of managing issues makes a bit difficult tracking whether the first provider or any of its providers are fullfiling the SLAs or not. However, it is simpler and easier to understand. Faceted chains usually are usefull when there are no third party services interacting with the client.

We can represent faceted service chains as a directed graph, where the edges always represent a new issue creation.

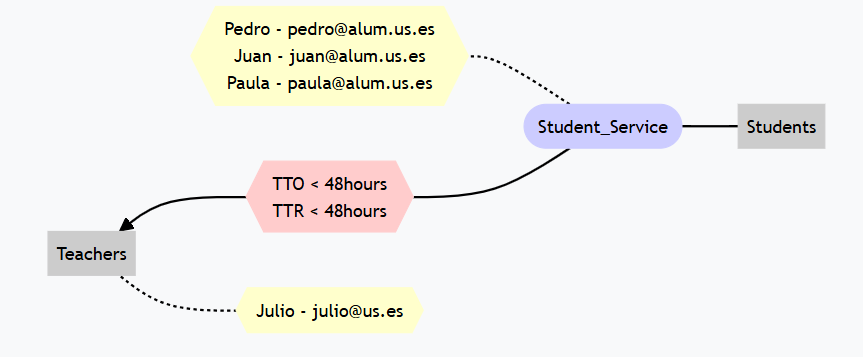

Type state chain representation

Figure 2: Graph representation of a service chain type faceted chain.

Type state chains

In type state service chains issue management is more complex but it is more efficent to detect who is not passing SLAs. In type state, when an issue is created, it has an state, which is related to just one service. In case this service needs to pass the responsability to another, it does it using the same issue, but changing its state. TTO is calculated as the sum of time the issue is not assigned to an user or a team. In case ownership-type is state, TTO is the sum of the times between the issue changes to a new state until is assigned to a person. In case ownership-type is state+team, it is calculated as the sum of the times between the issue is assigned to a new team until is assigned to a person. In type state service chains we must define initial and terminal services, because we can represent this chains as bidirectional graphs. At this point, the only way to determine where we can start or end the process is defining this flow. Here the edges means a issue changing its state. We also need to define an initial SLA, because issue creation is a special moment that just can be done once.

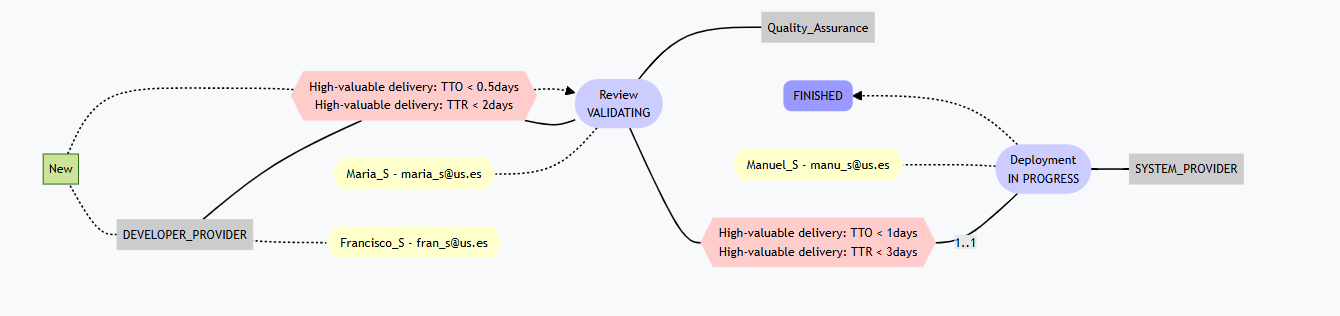

Type state chain representation

Figure 3: Graph representation of a service chain type state chain.

Yaml structure

Field name Field type Required/Optional Description
context Context Required Service chain context and general configuration
orgs Organization Required List of all organizations including its services and teams
sla SLA Required List of all SLAs involved in the service chain and its guarantees.

NOTE: It is not allowed to include the prefix "DEPRECATED" in any name or value for any property.

Yaml structure example

context:  Context
orgs:  Organization[]
sla: SLA[]

Context

This section of the yaml defines the service chain configuration. It is essential in order to understand how the chain works and some extra information.

Context

Field name Field type Required/Optional Description
id Number Required Unique identifier for the service chain.
version Number Required Version number of the context.
config Configuration Required Configuration details of the service chain.
chain-name String Optional Name of the service chain. It is highly recommended to include that property.
description String Optional Description of the service chain.

Context example

  id: 1
  version: 1
  config: Configuration
  chain-name: "Plane pieces quality assurance service chain"
  description: "This service chain contains all the services required to ensurance quality in plane pieces."

Configuration

Field name Field type Required/Optional Description
service-chain-type ServiceChainType Required Type of service chain.
initial ServiceStateObject[] Optional List of initial services and their states. It is not optional if chain type is state.
terminal ServiceStateObject[] Optional List of terminal services and their states. It is not optional if chain type is state.
x-redmine-custom-fields RedmineCustomFieldObject[] Optional List of Redmine custom fields that will be added to your Redmine's entities.
ownership-type OwnershipType Optional Defines the ownership type. By default its value is 'state' It is not optional if chain type is state.
initial-sla String Optional It is the name of the initial SLA assigned to the service chain. It will be the SLA taken into account when a new issue is created and it has not changed its state. It is not optional if chain type is state.

Configuration type state example

  service-chain-type: "state"
  initial: ServiceStateObject[]
  terminal: ServiceStateObject[]
  ownership-type: "state+team"
  initial-sla: "REVIEW_SHIP_SLA"
  x-redmine-custom-fields: RedmineCustomFieldObject[]
Configuration type faceted example
  service-chain-type: faceted

ServiceChainType

Value Description
state Represents type state chains. It means that issues change its states instead of being closed/stopped when it is necessary to contact another service in order to solve them.
faceted Represents type faceted chains. It means that issues closed/stopped and a new issue is created when it is necessary to contact another service in order to solve them.

ServiceStateObject

Field name Field type Required/Optional Description
service String Required It is the name of the service. Use "*" when you want to include all services.
states String[] Required List of states associated with the service. This states will be terminal or initial, and that means they have a special meaning because they start or end the flow.

ServiceStateObject example

  service: "Review ship"
     states:
       - "STUDYING"
       - "DRAFT"

This means that the service with the name "Review ship" has 2 terminal or initial states (depending on where this ServiceStateObject is). Theese states are "STUDYING" and "DRAFT".

RedmineCustomFieldObject

Field name Field type Required/Optional Description
name String Required Name of the Redmine custom field.
redmineType RedmineType Required The type of the Redmine custom field.
field_format RedmineFieldFormat Optional Defines the format of the field. By default its value is string.
is_required Boolean Optional Indicates whether the field is required or not. By default its value is false.
is_for_all Boolean Optional Specifies if the field applies to all new objects from the Type specified in RedmineType. By default its value is true.
description String Optional Additional description of the custom field. By default its value is ....
regexp String Optional Regular expression pattern to validate the field input. It can only have a value if field_format is string
default_value String\|Integer\|Boolean\|Float Optional Default value for the custom field if not specified. Take into account that its value must be the same type as field_format.

RedmineCustomFieldObject example

    name: 'Phone'
    field_format: 'string'
    redmineType: 'UserCustomField'
    regexp: '(?:\+34\s?)?(6\d{8}|7\d{8}|8\d{8}|9\d{8})'

RedmineType

This property is related to the entity in which we want to include the new custom field. Redmine only allows the following values.

Value Description
IssueCustomField The custom field will be added as a property to Redmine issues.
TimeEntryCustomField The custom field will be added as a property to Redmine Time entries.
ProjectCustomField The custom field will be added as a property to Redmine projects.
VersionCustomField The custom field will be added as a property to Redmine version objects.
DocumentCustomField The custom field will be added as a property to Redmine document objects.
UserCustomField The custom field will be added as a property to Redmine users.
GroupCustomField The custom field will be added as a property to Redmine groups.
TimeEntryActivityCustomField The custom field will be added as a property to Redmine activities.
IssuePriorityCustomField The custom field will be added as a property to Redmine issue priorities.
DocumentCategoryCustomField The custom field will be added as a property to Redmine document categories.

RedmineFieldFormat

This property specifies the type of the custom field that you want to add to your Redmine entities. In the future we may add some more but until now only the following are supported.

Value Description
string The custom field which will be added as a property to Redmine objects will be type String.
int The custom field which will be added as a property to Redmine objects will be type Integer.
bool The custom field which will be added as a property to Redmine objects will be type Boolean.
float The custom field which will be added as a property to Redmine objects will be type Float.

OwnershipType

This property default value is 'state'. It has really strong implications in TTO and TTR calculations, which implies that it is common for all issues created.

Value Description
state Represents ownership-type state. It means that TTO is calculated as the sum of the times between each change of state and the moment the issue is assigned to a person. TTR is calculated as the sum of the times between each user assignation and each change of state.
state+team Represents ownership-type state+team. It means that TTO is calculated as the sum of the times between each group assignation and the moment the issue is assigned to a person. TTR is calculated as the sum of the times betwwen each user asignation and each group assignation plus the time between the last group assignation and the closing date.

Organization Objects

Each Organization defined in orgs section must contain the following atributes and schema.

Organization

Field name Field type Required/Optional Description
code String Required Unique identifier for the organization.
name String Required Name of the organization. It must be unique.
teams Team[] Optional List of all the teams of the organization involved in the chain. The organization must have teams in order to have services and be a client or a provider.
services Service[] Optional List of services offered by the organization. The organization must have teams for its services. Moreover, services are required in order to be a provider.

Organization example

code: "AQC"
name: "Aerospace Quality Corp"
teams: Team[]
services: Service[]

Team

It is necessary that we include x-redmine-profile property when importing a chain in Redmine, and x-itop-profiles when importing a chain in ITop.

Field name Field type Required/Optional Description
name String Required Name of the team.
x-redmine-profile RedmineProfile Optional Redmine profile associated with the team.
x-itop-profiles ITopProfile[] Optional List of all ITop profiles associated with the team.
members Member[] Required List of all the team members.

Team example

name: "Inspection Team"
x-redmine-profile: FunctionalUser
x-itop-profiles: ITopProfile[]
members: Member[]

RedmineProfile

Defines the possible Redmine profiles for the users in the team. This profiles allows users to have privileges for managing issues and other acitivities inside Redmine.

NOTE: This privileges are inherited to all team members.

Value Description
FunctionalUser It allows the members of the team to manage issues.
ITUser Currently it does not provide any privileges. In the future it will do it.

ITopProfile

This values are the currently available on ITop defaultly. You can have some additional information in the following link Here we leave the ITop official documentation chart about profiles.

NOTE: This privileges are inherited to all team members.

Value Description
Administrator Has the rights on everything (bypassing any control).
Portal user Has the rights to access the user portal. People having this profile will not be allowed to access the standard application; they will be automatically redirected to the user portal.
Configuration Manager Person in charge of the documentation of the managed CIs.
Service Desk Agent Person in charge of creating incident reports.
Support Agent Person analyzing and solving the current incidents.
Problem Manager Person analyzing and solving the current problems.
Change Implementor Person executing the changes.
Change Supervisor Person responsible for the overall change execution.
Change Approver Person who could be impacted by some changes.
Service Manager Person responsible for the service delivered to the [internal] customer.
Document author Any person who could contribute to documentation.
Portal power user (New in 2.0.1) Users having this profile will have the rights to see all the tickets for a customer in the portal. Must be used in conjunction with other profiles (e.g. Portal User).
REST Services User (New in 2.5.0) User account with access to the REST Web Services. If the configuration setting secure_rest_services is set to true (which is the default), then only the user accounts having this profile are allowed to use the REST Web services.

ITopProfile[] example

  x-itop-profiles:
      - x-itop-profile: Configuration Manager
      - x-itop-profile: Service Desk Agent
      - x-itop-profile: Support Agent
      - x-itop-profile: Problem Manager
      - x-itop-profile: Service Manager

Member

Field name Field type Required/Optional Description
name String Required Name of the team member. It can (and should) include surnames.
user String Required Username of the team member. It is the login name for the person.
email String Required Email of the team member.
roles Role[] Optional List of roles assigned to the member.
x-itop-default-password String Optional If the user is going to be imported on ITop and it is not going to be an externalUser, you can choose this account's password with this property. It must contains at least 8 characters, 1 number, 1 uppercase, 1 lowercase and 1 special character. If this property is not defined, by default the password will be changeMe1@.
x-itop-external Boolean Optional If the user is going to be imported on ITop, you can choose the account's type. If the property is true, the user will be imported as an ExternalUser. In case the property is not defined or it is false, it will be imported as LocalUser.
x-itop-profiles ITopProfile[] Optional In addition to all ITop profiles associated with the team that the user inherits, you can add some private profiles to it using this property.

Member example

name: "John Doe"
user: "jdoe"
email: "jdoe@example.com"
roles: Role[]
x-itop-default-password: "SecureP@ss1!"
x-itop-external: false
x-itop-profiles: ITopProfile[]

Role

Field name Field type Required/Optional Description
name String Required Role name (e.g., "Developer, Student, Manager, etc").

Role example

name: "Inspector"

Service

Field name Field type Required/Optional Description
name String Required Name of the service. It must be unique.
description String Optional Description of the service.
x-redmine-state String Optional Name of the state associated with the service. Remember that each service must have just only one state. It is necessary when importing a Redmine type state service chain.
x-redmine-tickets-types TicketTypeEnum[] Optional List of Redmine ticket types applicable to the service. It is necessary when importing a Redmine type state service chain.
teams TeamObject[] Optional List of teams responsible for the service. This teams must belong to the organization.
providers ProviderObject[] Optional List of providers needed for the service.
customers CustomerObject[] Optional List of customers for the service.

Service example

name: "Quality Control"
description: "Ensures all parts meet safety and performance standards."
x-redmine-state: "In Progress"
x-redmine-tickets-types: TicketTypeEnum[]
teams: TeamObject[]
providers: ProviderObject[]
customers: CustomerObject[]

TeamObject

Field name Field type Required/Optional Description
name String Required It is the name of the organization team that manages this service.

TeamObject example

NOTE: Remember you have to reference an existing team. We assuming here that "Inspection Team" is defined in the organization that has this service.

name: "Inspection Team"

ProviderObject

This object represents the organization, service and SLA needed to provide a service.

Field name Field type Required/Optional Description
name String Required Name of the provider organization. It is the name of the organization that is responsible of being able to provide this service. Remember that this references an existing organization in the yaml file. It is only allowed to reference organization by it's name. Writting here the provider organization code is not valid and will be interpreted as introducing an invalid name.
service String Required Name of the provider organization service needed to provide this service.
sla String Required It is the name of the SLA associated with the provider and the customer of this service. Remember that this SLA is different from the SLA that has the service that needs this provider`s service.

ProviderObject example

name: "Aerospace Quality Corp Provider"
service: "Material Inspection Helper"
sla: "Aerospace Quality Corp Provider SLA"

CustomerObject

This object represents the organization, and SLA that are clients from this service.

Field name Field type Required/Optional Description
name String Required Name of the customer organization. It is the name of the organization that is the client from this service. Remember that this references an existing organization in the yaml file. It is only allowed to reference organization by it's name. Writting here the customer organization code is not valid and will be interpreted as introducing an invalid name.
sla String Required It is the name of the SLA associated with the customer and this service's organization.

CustomerObject example

name: "Aerospace Quality Corp Client"
sla: "Aerospace Quality Corp SLA"

TicketTypeEnum

Defines the possible values for Redmine ticket types. This is a conceptual type, which means there are no incorrect values. Do not forget that there is only one state allowed per service.

Value Description
Your ticket type 1 First ticket type of your service chain.
Your ticket type 2 Second ticket type of your service chain.
Your ticket type 3 Third ticket type of your service chain.

TicketTypeEnum example

Imagine that you are configuring a service chain for quality assurance in plance pieces. You could define different ticket types depending on the plane. Let's see an example:

Value Description
Defense Plane Theese tickets must be resolved quickly.
Comercial Plane Theese tickets are important but they have less priority than defense ones.

SLA Objects

SLA

Each SLA defined in sla section must contain the following atributes and schema.

Field name Field type Required/Optional Description
name String Required Name of the SLA.
guarantees GuaranteesObject[] Required List of guarantees defining the scope and objectives of the SLA.

SLA example

name: "Aerospace Quality Corp SLA"
guarantees: GuaranteesObject[]

GuaranteesObject

Field name Field type Required/Optional Description
scope ScopeObject Required Defines the scope of the guarantee, including the type of request depending on the tool where you want to import the chain.
objectives ObjectivesObject Required Specifies the objectives, including time-to-ownership (TTO) and time-to-resolution (TTR).

GuaranteesObject example

scope: ScopeObject
objectives: ObjectivesObject

ScopeObject

In scope we must define some specific tool configuration. When preparing the yaml for Redmine importation we only need to include x-redmine-tickets-type. Remember that this value must be one of the ticket types defined in the chain. When using ITop, it is needed to specify priority and request type.

Field name Field type Required/Optional Description
x-redmine-tickets-type String Optional Type of ticket in Redmine associated with the SLA guarantee.
x-itop-priority ITopPriority Optional Type of priority in ITop associated with the SLA guarantee.
x-itop-request-type ITopRequestType Optional Type of request in ITop associated with the SLA guarantee.

ScopeObject example

x-redmine-tickets-type: Defense Plane
x-itop-priority: '*'
x-itop-request-type: 'incident'

ITopPriority

Defines the possible values for ITop priority types.

Value Description
1 It represents critical priority in ITop.
2 It represents high priority in ITop.
3 It represents medium priority in ITop.
4 It represents low priority in ITop.
* It represents all priorities in ITop. It is a special value that simplifies notation.

ITopRequestType

Defines the possible values for ITop requests types.

Value Description
incident It represents Incident requests in ITop.
user_request It represents UserRequest requests in ITop.
* It represents both request types in ITop. It is a special value that simplifies notation.

ObjectivesObject

Field name Field type Required/Optional Description
tto TimeConstraintObject Required Defines the maximum allowed time for time-to-ownership (TTO).
ttr TimeConstraintObject Required Defines the maximum allowed time for time-to-resolution (TTR).

ObjectivesObject example

tto: TimeConstraintObject
ttr: TimeConstraintObject

TimeConstraintObject

Field name Field type Required/Optional Description
max.value Integer Required Maximum time allowed for the SLA objective. Must be greater than 0.
max.unit TimeUnitEnum Required Unit of time measurement.

TimeConstraintObject example

  max:
      value: 90
      unit: hours

TimeUnitEnum

Defines the possible values for time units.

Value Description
days Represents days as a unit of time.
hours Represents hours as a unit of time.
minutes Represents minutes as a unit of time.

Service chain examples

In this section we provide some examples for a better understanding and an overall view of the service chain modeling language.

Type faceted

  • A simplified and synthetic example based on University, in YAML format, compliant with the current Service chain specification version.

  • A simplified and synthetic example based on University including third party services, in YAML format, compliant with the current Service chain specification version.

  • An example based on Junta de Andalucía digital agency including two versions. The first one is a simpler version than the second one. Both are compliant with the current Service chain specification version.

Type state

  • A simplified and synthetic example based on Junta de Andalucía, in YAML format, compliant with the current Service chain specification version.

  • Two more versions of the same chain in order to explore versioning and differences in a simplified version of Junta de Andalucía. The first one adds a new service and the second one adds SLA multiplexion.

  • A complex example based on Junta de Andalucía, in YAML format, compliant with the current Service chain specification version.

References

  1. JSON
  2. YAML
